Benefits

Efficient Data Management

HIS/LIS connection;
Portable & Easy-to-use

· Small in size, suitable for areas with limited spaces.
· Built-in temperature control.
Cost-efficient

· Broad test menu.
· Reagents can be stored at 2-30℃
Fast & Reliable

Results in 3-15 minutes, full traceability;

Specification

Description
Technologies	Built-in thermal printer 8'' LED touch screen LIS/HIS connection ID Chip
Sample size	75μ
Standards	CE, NMPA, NGSP, IFCC
Dimension	270x238x146mm
Weight	2.8kg
Application	Laboratory, ER, ICU, Clinics, GP office, Ambulance, etc.

Test Menu

COVID-19

Items	Sample Types	Sample Size	Reaction Time	Measuring Range	Clinical Reference
2019-nCoV Antibody	Whole Blood Serum Plasma	10μL	10 mins	Qualitative	Negative
2019-nCoV IgM				Qualitative	Negative
2019-nCoV IgM/IgG				Qualitative	Negative
2019-nCoV Antigen	NP/OP	/	15 mins	Qualitative	Negative
2019-nCoV RBD Antibody	Fingerstick or Venous WB/S/P	20μL	15 mins	Qualitative	Negative

Diabetes & Renal injury

Items	Sample Types	Sample Size	Reaction Time	Measuring Range	Clinical Reference
HbA1c	Whole Blood (Fingerstick/Venous)	10μL	5 mins	4.0-14.5%	4-6.5%
MAU	Urine	75μL	3 mins	5-300 mg/L	0-20 mg/L
CysC	Whole Blood Serum Plasma	10μL	5 mins	0.2-10 mg/L	0.5-1.1mg/L
β2-MG	Whole Blood Serum Plasma	10μL	10 mins	0.3-20 mg/L	1.0-2.7 mg/L
NGAL	Urine	75μL	15 mins	10-1500 ng/mL	≤131.7ng/mL

Thyroid Function

Items	Sample Types	Sample Size	Reaction Time	Measuring Range	Clinical Reference
T3	Whole Blood Serum Plasma	75μL	15 mins	0.61-9.22nmol/L	1.23-3.07nmol/L
T4				12.87-300nmol/L	66-181 nom/L
TSH				0.1-100 mlU/L	0.3-4.2mlU/L
fT3				0.40-50.00pmol/L (0.26-32.55pg/mL)	2.8-7.1pmol/L (1.82-4.61 pg/ml)
fT4				1.00-100 pmol/L (0.078-7.77ng/dl)	12-22 pmol/L (0.94-1.72 ng/dL)

Fertility

Items	Sample Types	Sample Size	Reaction Time	Measuring Range	Clinical Reference
β-HCG	Whole Blood Serum Plasma	20μL	15 mins	2-200,000mlU/mL	5 mlU/mL
LH	Whole Blood Serum Plasma	75μL	15 mins	1-100mlU/mL	Male: 1.70-8.60 mIU/mL; Female: Follicular phase: 2.95-13.65 mIU/mL Ovulation phase：13.65-95.75 mIU/mL Luteal phase：1.25-11.00 mIU/mL Menopause phase：8.24-55.23 mIU/mL
FSH	Whole Blood Serum Plasma	75μL	15 mins	1-100mlU/mL	Male: 1.50-12.40 mIU/mL Female: Follicular phase：4.46-12.43 mIU/mL Ovulation phase：4.88-20.96 mIU/mL Luteal phase：1.96-7.70 mIU/mL Menopause phase： 22.70-130.00 mIU/mL
Prog	Whole Blood Serum Plasma	75μL	15 mins	1.5-60ng/mL	Male: 0.2-1.5 ng/mL Female: Follicular phase: 0.2-2.0 ng/mL Ovulation phase: 0.7-3.5 ng/mL Luteal phase: 3.0-30 ng/mL Menopause phase: 0.1-0.9 ng/mL 7 weeks of pregnancy: 24.5±7.6 ng/mL 9-12 weeks of pregnancy: 38.0±13.0 ng/mL
PRL	Whole Blood Serum Plasma	75μL	15 mins	1-200ng/mL	Female（non-pregnant): 4.60-25.07 ng/mL Male: 3.45-17.42 ng/mL
E2	Whole Blood Serum Plasma	75μL	15 mins	9-3000pg/mL	Male: <85 pg/mL Female: Follicular Phase: 12-262 pg/mL Ovulation: 40-396 pg/mL Luteal Phase: 21-381 pg/mL Menopause: <190 pg/mL Pregnancy: >145 pg/mL
Testosterone	Whole Blood Serum Plasma	75μL	15 mins	0.2-15ng/mL	Male: 20-49 years old, 1.61-8.41 ng/mL ≥50 years old, <0.61 ng/mL Female: 20-49 years old, ≤0.80 ng/mL ≥50 years old, <0.71 ng/mL
AMH	Whole Blood Serum Plasma	75μL	15 mins	0.1-16ng/mL	Male: 20-60 years old, 0.92-13.89 ng/mL Female： 20-29 years old, 0.88-10.35 ng/mL 30-39 years old, 0.31-7.86 ng/mL 40-50 years old, ≤5.07 ng/mL

Cardiac Markers

Items	Sample Types	Sample Size	Reaction Time	Measuring Range	Clinical Reference
NT-proBNP	Whole Blood Serum Plasma	75μL	15 mins	18-35000pg/mL	＜75 years old 0-300 pg/mL ≥ 75 years old 0-450 pg/mL
CTnI				0.1-50ng/mL	0-0.3 ng/mL
Myo				2.0-400ng/mL	0-58 ng/mL
CK-MB				0.3-100ng/mL	0-5 ng/mL
3 in 1 (cTnl/MYO/CK-MB)				Same with the single item	Same with the single item
BNP	Whole Blood Plasma			5-5000pg/mL	0-100 pg/mL
H-FABP	Whole Blood Serum Plasma			1-120ng/mL	0-7ng/mL
2 in 1 (cTnl/NT-proBNP）				Same with the single item	Same with the single item
hsCRP		10μL	3 mins	0.1-10 mg/L	≤1.0 mg/L
cTnT		100μL for whole blood; 75μL for plasma/serum	15 mins	0.003-10 ng/mL	0-0.1 ng/mL
Lp-PLA2		75μL	15 mins	10-1000 ng/mL	＜225 ng/mL

Coagulation

Items	Sample Types	Sample Size	Reaction Time	Measuring Range	Clinical Reference
D-Dimer	Whole Blood Plasma	15μL for whole blood 10μL for plasma	5 mins	0.1-10 mg/L	0-0.5 mg/L
D-Dimer one-step	Whole Blood Plasma	100μL for whole blood 75μL for plasma	15 mins	0.1-10 mg/L	0-0.5 mg/L

Inflammation Markers

Items	Sample Types	Sample Size	Reaction Time	Measuring Range	Clinical Reference
PCT	Whole Blood Serum Plasma	75μL for whole blood 50 μL for serum/plasma	15 mins	0.1-100ng/mL	0-0.5 ng/L
CRP (hsCRP+CRP)		8.5μL for whole blood 5 μL for serum/plasma	3 mins	0.5-200mg/L	CRP: 0-10 mg/L HsCRP: 0-1 mg/L
SAA		10μL	15 mins	1.0-300mg/L	0-10 mg/L
2 in 1 (CRP+PCT)		75μL		CPR: 0.5-150mg/L PCT: 0.1-100mg/L	CPR: ＜10mg/L PCT: ＜0.5mg/L
IL-6		75μL		3-4000 pg/Ml	≤10 pg/mL

Tumor Markers

Items	Sample Types	Sample Size	Reaction Time	Measuring Range	Clinical Reference
AFP	Whole Blood Serum Plasma	75μL	15 mins	5-400 ng/mL	0-20 ng/mL
PSA				2-100 ng/mL	0-4 ng/mL
CEA				1-500 ng/mL	0-5 ng/mL
fPSA				0.2-30 ng/mL	＜1 ng/mL

Others

Items	Sample Size	Reaction Time	Qualifications
Cortisol	75μL	15 mins	NMPA
Vitamin D			CE, NMPA
S100β			NMPA
Ferritin		10 mins	CE

Büyütmek için tıkla

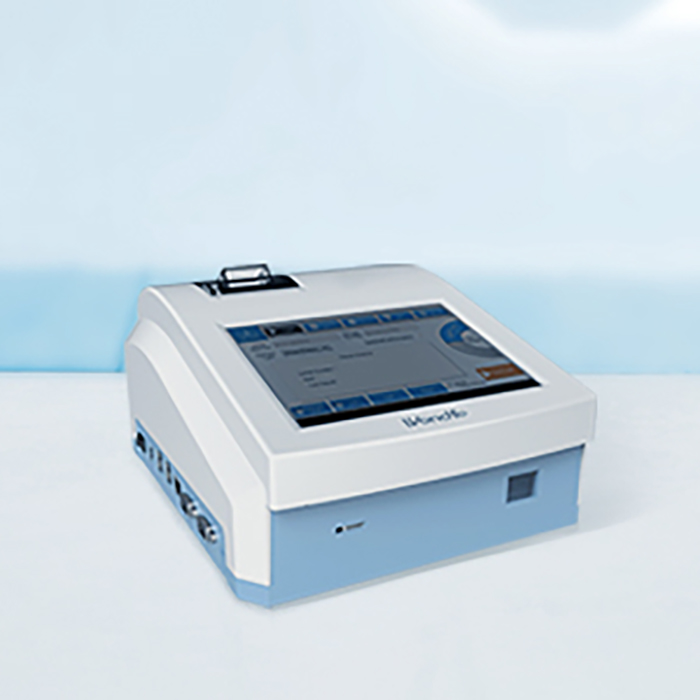

Finecare™ FIA Meter Plus

Finecare™ FIA Meter Plus is a fluorescence immunochromatographic analysing system with internal temperature control, which helps diagnose conditions such as infection, diabetes, cardiovascular diseases, renal injury and cancers, etc.

Açıklama

Description
Technologies	Built-in thermal printer 8'' LED touch screen LIS/HIS connection ID Chip
Sample size	75μ
Standards	CE, NMPA, NGSP, IFCC
Dimension	270x238x146mm
Weight	2.8kg
Application	Laboratory, ER, ICU, Clinics, GP office, Ambulance, etc.

Items	Sample Types	Sample Size	Reaction Time	Measuring Range	Clinical Reference
2019-nCoV Antibody	Whole Blood Serum Plasma	10μL	10 mins	Qualitative	Negative
2019-nCoV IgM				Qualitative	Negative
2019-nCoV IgM/IgG				Qualitative	Negative
2019-nCoV Antigen	NP/OP	/	15 mins	Qualitative	Negative
2019-nCoV RBD Antibody	Fingerstick or Venous WB/S/P	20μL	15 mins	Qualitative	Negative

Items	Sample Types	Sample Size	Reaction Time	Measuring Range	Clinical Reference
HbA1c	Whole Blood (Fingerstick/Venous)	10μL	5 mins	4.0-14.5%	4-6.5%
MAU	Urine	75μL	3 mins	5-300 mg/L	0-20 mg/L
CysC	Whole Blood Serum Plasma	10μL	5 mins	0.2-10 mg/L	0.5-1.1mg/L
β2-MG	Whole Blood Serum Plasma	10μL	10 mins	0.3-20 mg/L	1.0-2.7 mg/L
NGAL	Urine	75μL	15 mins	10-1500 ng/mL	≤131.7ng/mL

Items	Sample Types	Sample Size	Reaction Time	Measuring Range	Clinical Reference
T3	Whole Blood Serum Plasma	75μL	15 mins	0.61-9.22nmol/L	1.23-3.07nmol/L
T4				12.87-300nmol/L	66-181 nom/L
TSH				0.1-100 mlU/L	0.3-4.2mlU/L
fT3				0.40-50.00pmol/L (0.26-32.55pg/mL)	2.8-7.1pmol/L (1.82-4.61 pg/ml)
fT4				1.00-100 pmol/L (0.078-7.77ng/dl)	12-22 pmol/L (0.94-1.72 ng/dL)

Items	Sample Types	Sample Size	Reaction Time	Measuring Range	Clinical Reference
β-HCG	Whole Blood Serum Plasma	20μL	15 mins	2-200,000mlU/mL	5 mlU/mL
LH	Whole Blood Serum Plasma	75μL	15 mins	1-100mlU/mL	Male: 1.70-8.60 mIU/mL; Female: Follicular phase: 2.95-13.65 mIU/mL Ovulation phase：13.65-95.75 mIU/mL Luteal phase：1.25-11.00 mIU/mL Menopause phase：8.24-55.23 mIU/mL
FSH	Whole Blood Serum Plasma	75μL	15 mins	1-100mlU/mL	Male: 1.50-12.40 mIU/mL Female: Follicular phase：4.46-12.43 mIU/mL Ovulation phase：4.88-20.96 mIU/mL Luteal phase：1.96-7.70 mIU/mL Menopause phase： 22.70-130.00 mIU/mL
Prog	Whole Blood Serum Plasma	75μL	15 mins	1.5-60ng/mL	Male: 0.2-1.5 ng/mL Female: Follicular phase: 0.2-2.0 ng/mL Ovulation phase: 0.7-3.5 ng/mL Luteal phase: 3.0-30 ng/mL Menopause phase: 0.1-0.9 ng/mL 7 weeks of pregnancy: 24.5±7.6 ng/mL 9-12 weeks of pregnancy: 38.0±13.0 ng/mL
PRL	Whole Blood Serum Plasma	75μL	15 mins	1-200ng/mL	Female（non-pregnant): 4.60-25.07 ng/mL Male: 3.45-17.42 ng/mL
E2	Whole Blood Serum Plasma	75μL	15 mins	9-3000pg/mL	Male: <85 pg/mL Female: Follicular Phase: 12-262 pg/mL Ovulation: 40-396 pg/mL Luteal Phase: 21-381 pg/mL Menopause: <190 pg/mL Pregnancy: >145 pg/mL
Testosterone	Whole Blood Serum Plasma	75μL	15 mins	0.2-15ng/mL	Male: 20-49 years old, 1.61-8.41 ng/mL ≥50 years old, <0.61 ng/mL Female: 20-49 years old, ≤0.80 ng/mL ≥50 years old, <0.71 ng/mL
AMH	Whole Blood Serum Plasma	75μL	15 mins	0.1-16ng/mL	Male: 20-60 years old, 0.92-13.89 ng/mL Female： 20-29 years old, 0.88-10.35 ng/mL 30-39 years old, 0.31-7.86 ng/mL 40-50 years old, ≤5.07 ng/mL

Items	Sample Types	Sample Size	Reaction Time	Measuring Range	Clinical Reference
NT-proBNP	Whole Blood Serum Plasma	75μL	15 mins	18-35000pg/mL	＜75 years old 0-300 pg/mL ≥ 75 years old 0-450 pg/mL
CTnI				0.1-50ng/mL	0-0.3 ng/mL
Myo				2.0-400ng/mL	0-58 ng/mL
CK-MB				0.3-100ng/mL	0-5 ng/mL
3 in 1 (cTnl/MYO/CK-MB)				Same with the single item	Same with the single item
BNP	Whole Blood Plasma			5-5000pg/mL	0-100 pg/mL
H-FABP	Whole Blood Serum Plasma			1-120ng/mL	0-7ng/mL
2 in 1 (cTnl/NT-proBNP）				Same with the single item	Same with the single item
hsCRP		10μL	3 mins	0.1-10 mg/L	≤1.0 mg/L
cTnT		100μL for whole blood; 75μL for plasma/serum	15 mins	0.003-10 ng/mL	0-0.1 ng/mL
Lp-PLA2		75μL	15 mins	10-1000 ng/mL	＜225 ng/mL

Items	Sample Types	Sample Size	Reaction Time	Measuring Range	Clinical Reference
D-Dimer	Whole Blood Plasma	15μL for whole blood 10μL for plasma	5 mins	0.1-10 mg/L	0-0.5 mg/L
D-Dimer one-step	Whole Blood Plasma	100μL for whole blood 75μL for plasma	15 mins	0.1-10 mg/L	0-0.5 mg/L

Items	Sample Types	Sample Size	Reaction Time	Measuring Range	Clinical Reference
PCT	Whole Blood Serum Plasma	75μL for whole blood 50 μL for serum/plasma	15 mins	0.1-100ng/mL	0-0.5 ng/L
CRP (hsCRP+CRP)		8.5μL for whole blood 5 μL for serum/plasma	3 mins	0.5-200mg/L	CRP: 0-10 mg/L HsCRP: 0-1 mg/L
SAA		10μL	15 mins	1.0-300mg/L	0-10 mg/L
2 in 1 (CRP+PCT)		75μL		CPR: 0.5-150mg/L PCT: 0.1-100mg/L	CPR: ＜10mg/L PCT: ＜0.5mg/L
IL-6		75μL		3-4000 pg/Ml	≤10 pg/mL

Items	Sample Types	Sample Size	Reaction Time	Measuring Range	Clinical Reference
AFP	Whole Blood Serum Plasma	75μL	15 mins	5-400 ng/mL	0-20 ng/mL
PSA				2-100 ng/mL	0-4 ng/mL
CEA				1-500 ng/mL	0-5 ng/mL
fPSA				0.2-30 ng/mL	＜1 ng/mL

Items	Sample Size	Reaction Time	Qualifications
Cortisol	75μL	15 mins	NMPA
Vitamin D			CE, NMPA
S100β			NMPA
Ferritin		10 mins	CE

Ek bilgi

Marka	Wondfo

Wondfo Hakkında

Guangzhou Wondfo Biotech Co., Ltd., headquartered in Guangzhou science city, has been focusing on the R&D, production, sales and service of point-of-care testing (POCT) products and providing customers with professional rapid diagnosis and chronic disease management solutions since founded in 1992.

Wondfo now has more than 3000 employees and a wide range of products for the rapid identification of cardiovascular diseases, inflammation, tumor, infectious diseases, drug abuse, pregnancy, and so on, widely sold to 150+ countries and regions.
